Smart Manhole Cover Monitoring Terminal

AN-DMC

Product Manual

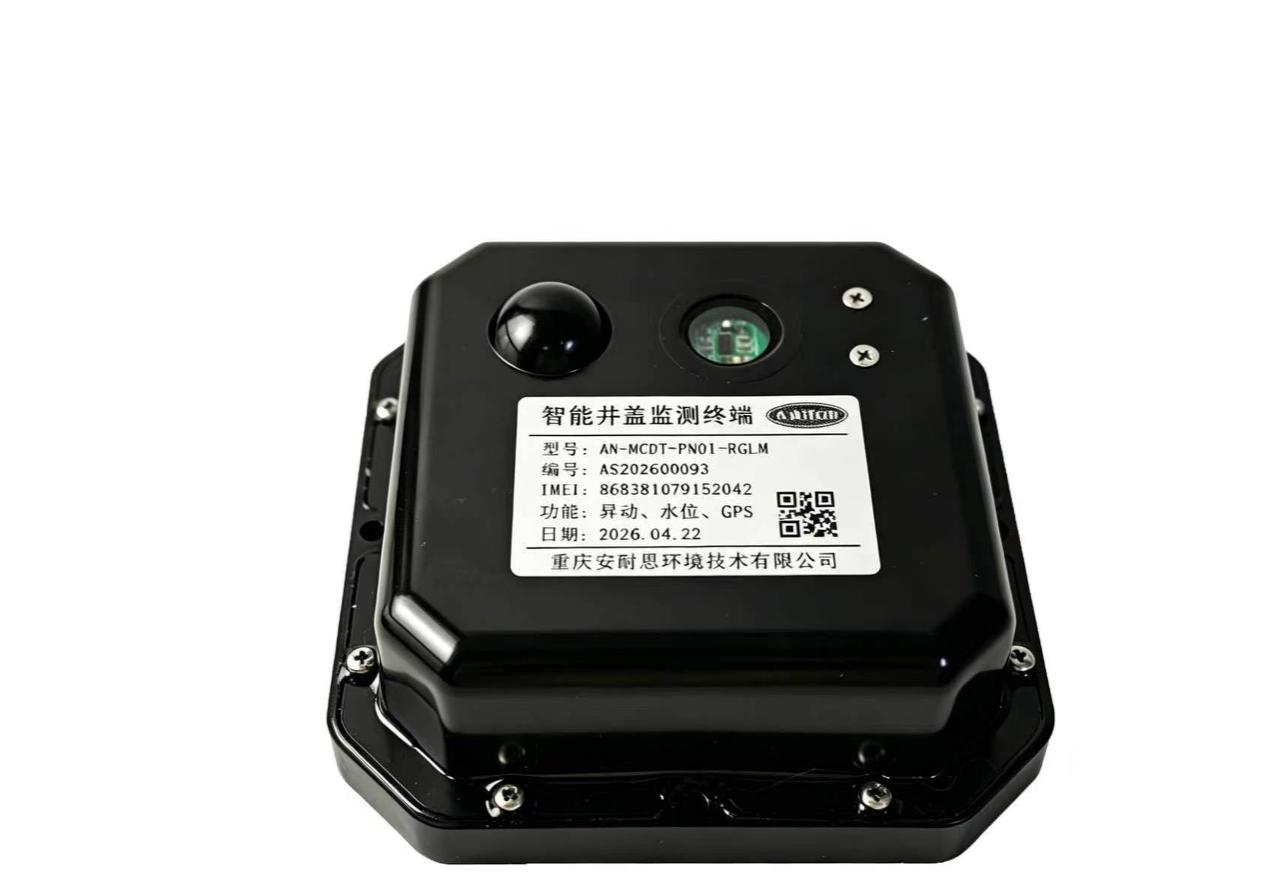

Smart Manhole Cover Monitoring Terminal, Model AN-DMC

Product Introduction

The Smart Manhole Cover Monitoring Terminal (hereinafter referred to as 'the Terminal') is an independently developed low-power smart sensor device designed by our company specifically for smart cities, municipal pipe networks, underground utility tunnels and similar environments. Based on an internal multi-axis attitude sensor, high-precision environmental sensing matrix and ranging radar, paired with a high-speed 4G wireless communication module, it can guard the safety of underground facilities 24/7 with high reliability.

Installed on the inner side of the manhole cover, the Terminal requires no complex construction on the road surface, enabling rapid deployment and simple post-installation maintenance. It effectively reduces labor and time costs, providing an efficient and stable intelligent solution for municipal manhole cover safety management (anti-theft, anti-displacement, anti-fall, etc.).

Key Advantages & Features

Measurable parameters (optional): Water level, temperature/humidity, light intensity, attitude, operating voltage, operating current, battery level, and position coordinates
Built-in 4G antenna
Installed on the inner side of the manhole cover, with minimal impact on road aesthetics
Supports batch configuration and group management
Fast installation, high concealment, and reduced maintenance costs
Combined tilt and vibration sensors with high sensitivity
Ultra-low power consumption: Low-power MCU, standby current < 20µA
Supports remote OTA upgrades, eliminating the need for on-site maintenance
Supports water immersion status monitoring

Technical Parameters

Battery: Built-in 3.6V 17000mAh (61.2Wh) primary lithium battery
Storage: Built-in 32Mb data storage chip
Device Attitude: Monitors roll and pitch angles
- Range: 0~180°
- Accuracy: ±1°
- Resolution: 0.1°
Water Level (Optional):
- Range: 0.15~12m
- Accuracy: ±3mm
- Resolution: 1mm
Temperature Range: -40~85℃
- Accuracy: ±0.3℃
Humidity Range: 0~100%
- Accuracy: ±2%
Light Intensity:
- Range: 0~65535 Lux
- Accuracy: ±7% (at 25℃)
System Status: Real-time monitoring of battery voltage, current, and power level
GPS Positioning (Optional): Accuracy of 1~10m, monitors device longitude and latitude
Bluetooth Module: Allows device parameter configuration via mobile Bluetooth APP
Wake-up Methods: Magnetic wake-up or alarm clock wake-up
Standby Current: < 20µA
Operating Modes: Continuous mode and heartbeat mode
Water Immersion Status: Supports water immersion monitoring
Sampling Settings: Adjustable sensor sampling frequency and data upload interval (adjustable range)
Real-Time Clock: Built-in real-time clock with calibration support
Remote Configuration: Supports remote parameter reading and setting
Software Upgrade: Supports remote OTA and batch upgrades
Communication Protocols: Standard AN-UNION and Modbus-RTU protocols; MQTT (optional)
Default Sampling/Upload Rate: 1 sample per hour, 1 upload per hour
Battery Life: 5 years (under default sampling rate)
Operating Temperature: 0~70℃
Data Transmission: 4G wireless transmission
Installation Method: 4-point quick installation on the inner side of the manhole cover
IP Rating: IP68
Housing Material: PC/ABS alloy
Dimensions: 120mm (L) × 120mm (W) × 36mm (H)
